Installation Instructions

Termination Bar T-96

Download PDF

Termination Bar T-96 Installation Instructions

Surface Preparation

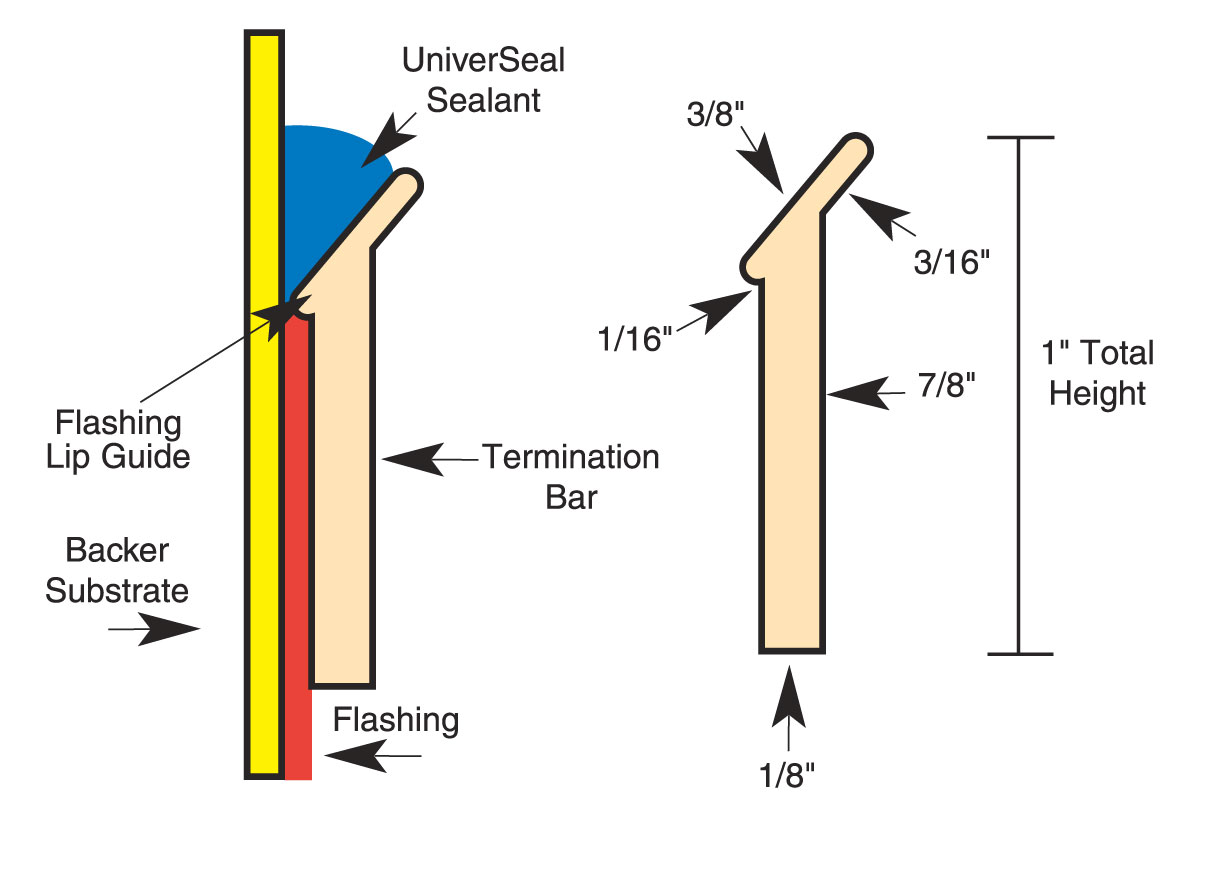

  • Place York’s Termination Bar T-96 at the top edge of the material so that the material guide lip is sitting on top of the flashing.
  • Use stainless steel screws to attach the termination bar to the substrate.
  • Fill the sealant lip with a sealant that is compatible with adjoining materials, such as York’s UniverSeal US-100, and avoid using sealants that contain high levels of solvents or plasticizers.
