Multi-Flash 500
Designed with a flexible 3oz., 5oz., or 7oz. sheet of copper laminated on both sides with a polymer fabric. Multi-Flash™ 500 uses include: cavity wall flashing, foundation sill flashing, flexible flashing, head and sill flashing and through-wall flashing and has a life of the wall warranty.

- No staining
- Life of the wall warranty
- Best in class puncture & tear resistance
- Made of 90% recycled material
- Copper meets ASTM B370-12
- Fire resistant: ASTM E84 Class B material
- Mold resistant: passes ASTM D3273
- Meets all performance specifications for asphaltic copper fabric flashing
- 90 day UV exposure
- Flexible and easy to cut and form by hand
- 60' rolls for less lap joints
- HPD# available upon request

- Through-wall flashing
- Transition membrane (air barriers, roofing, waterproofing)
- Roof to parapet flashing
- Jamb closure flashing

- Air barriers
- Spray polyurethane Foam
- Insulations boards
- Construction sealants
3 Part Spec
Details 2D and 3D

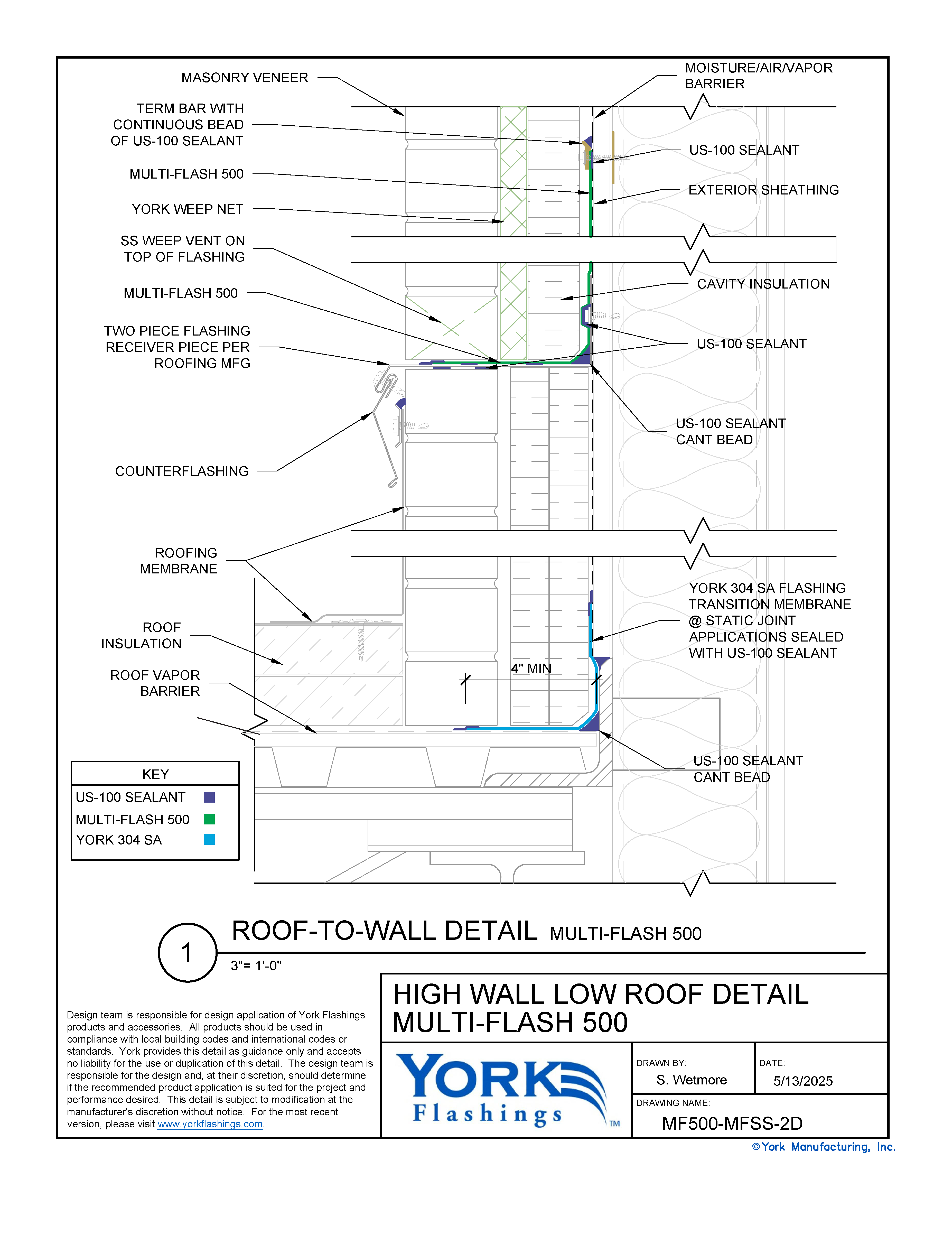

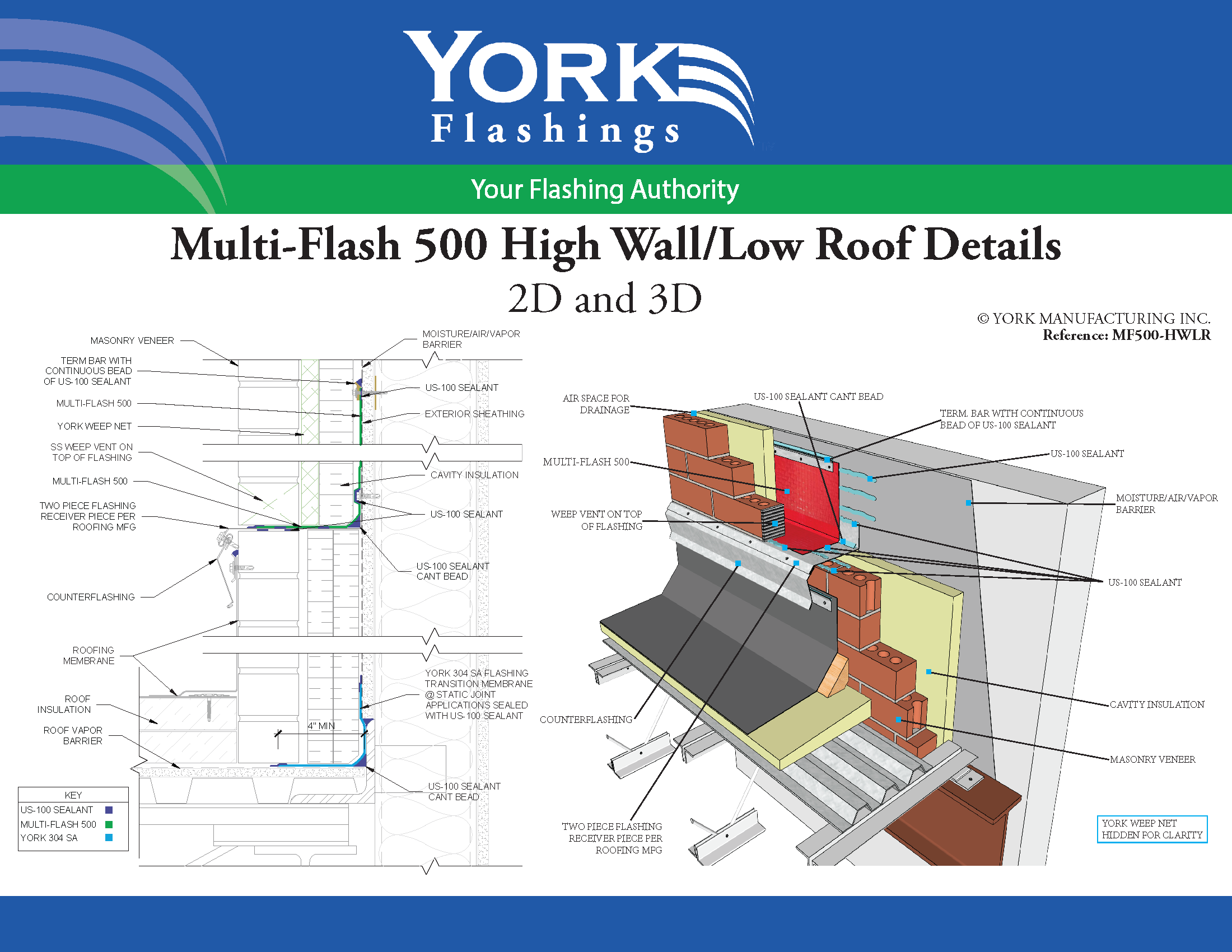

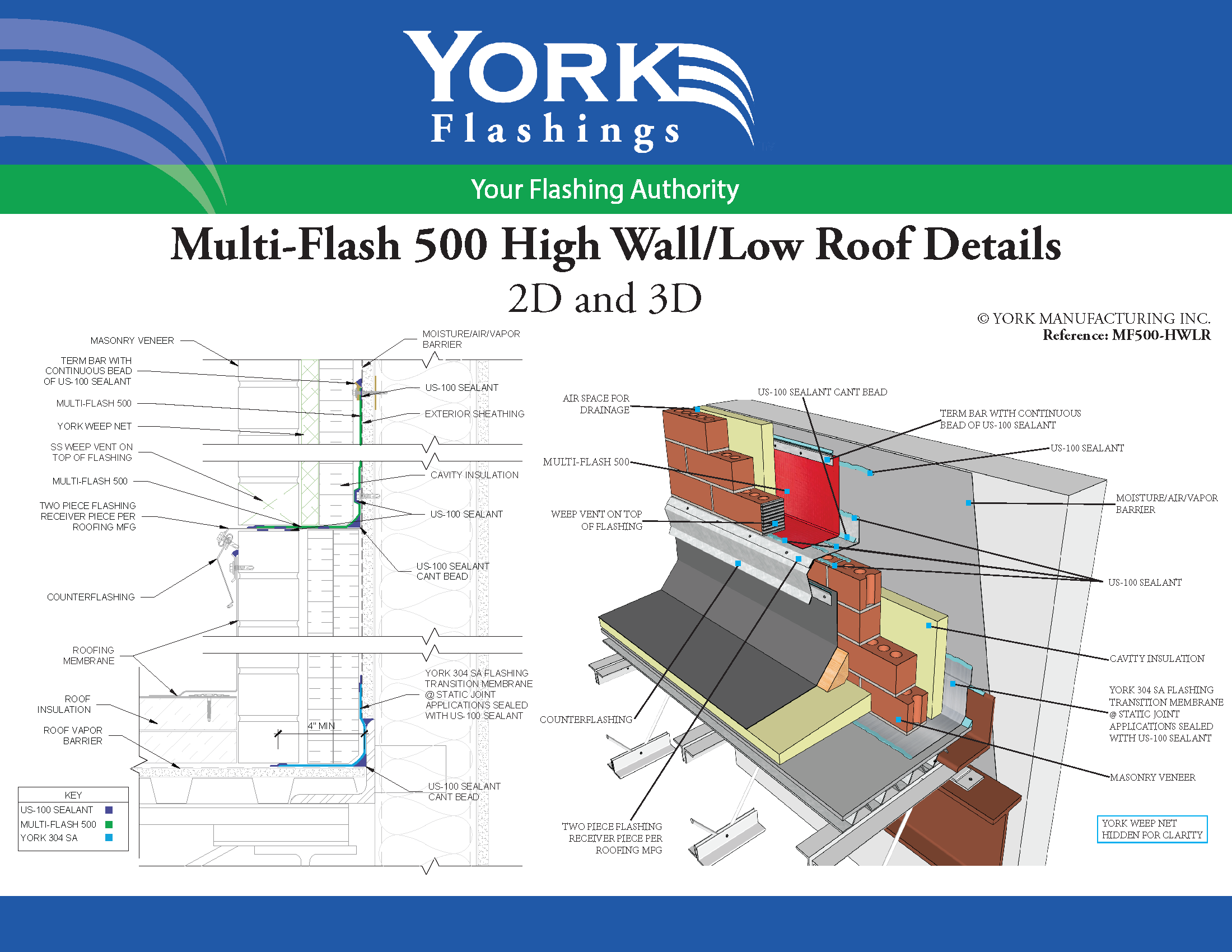

High Wall Low Roof

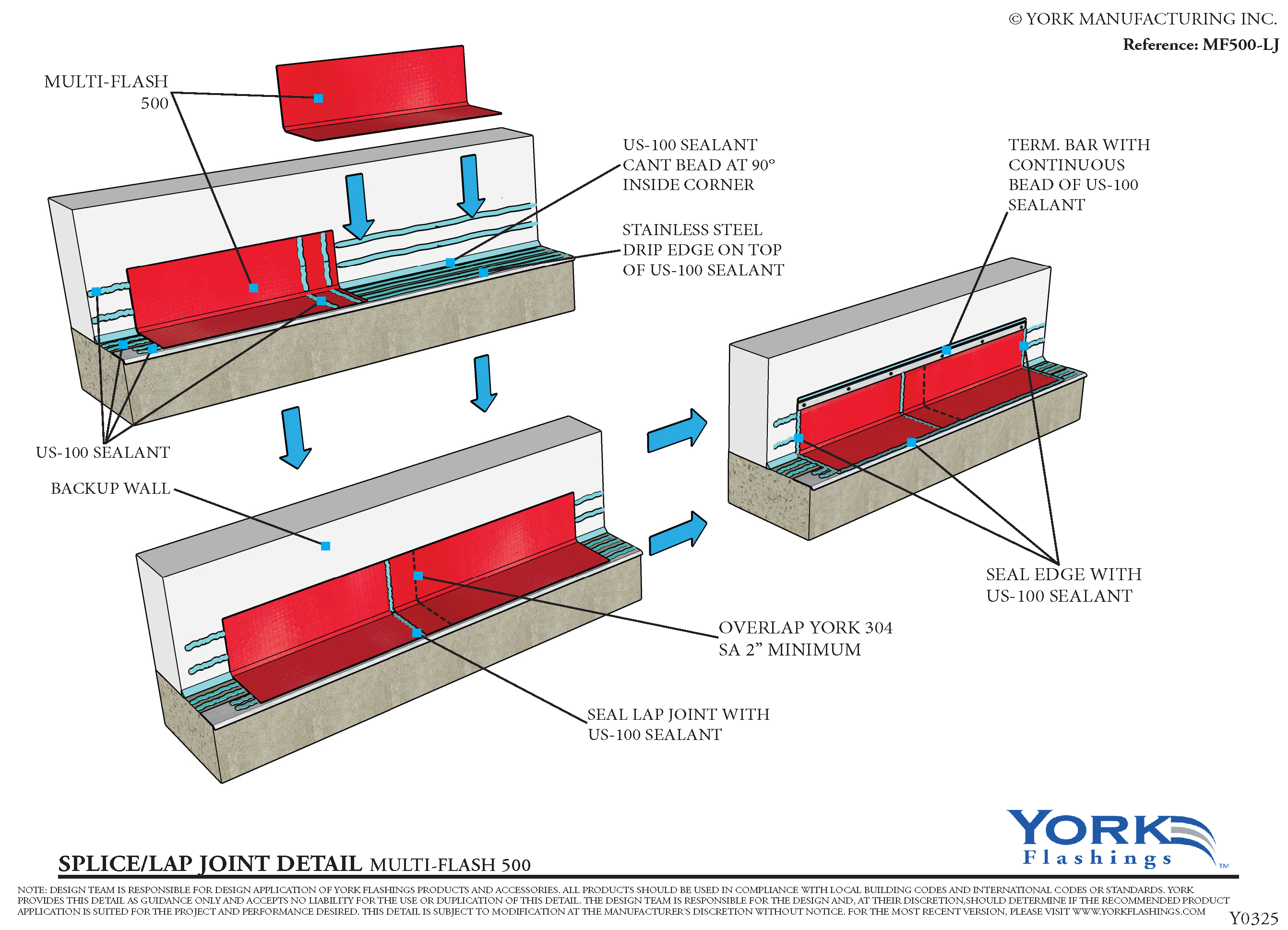

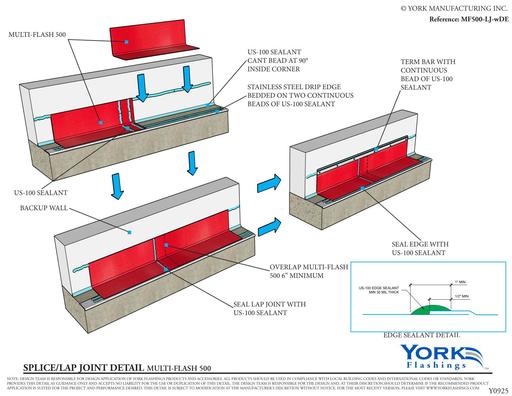

Lap Joint

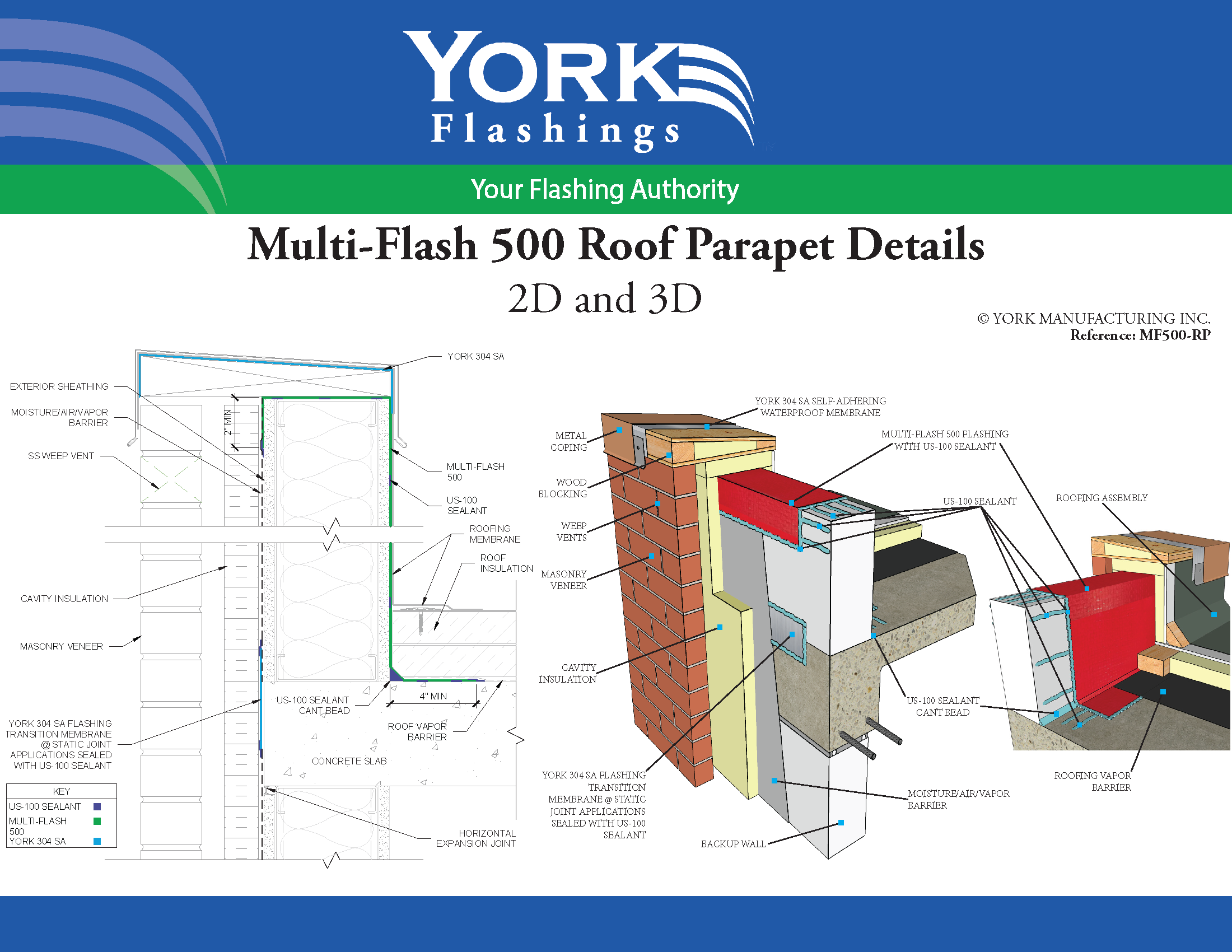

Roof to Wall Parapet

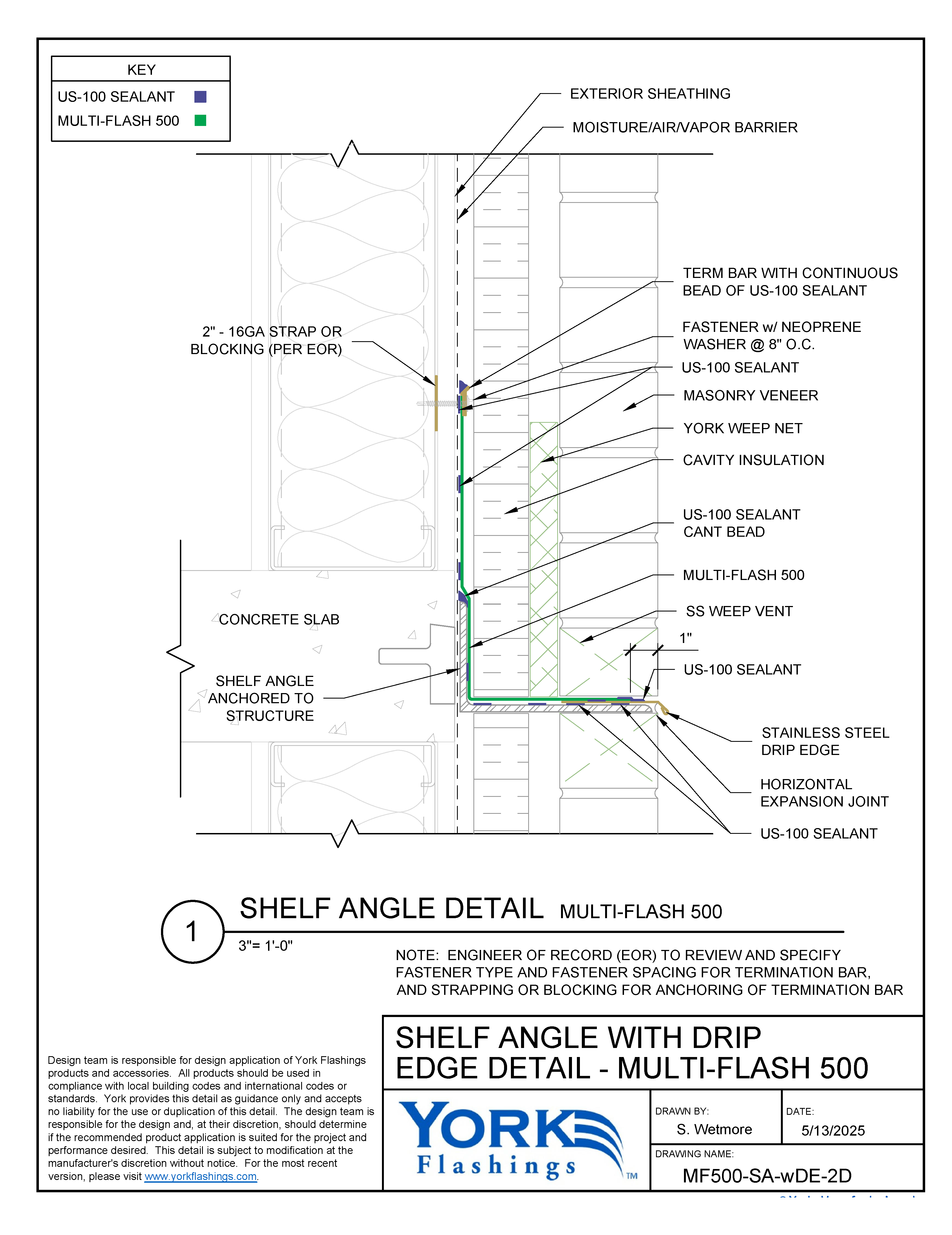

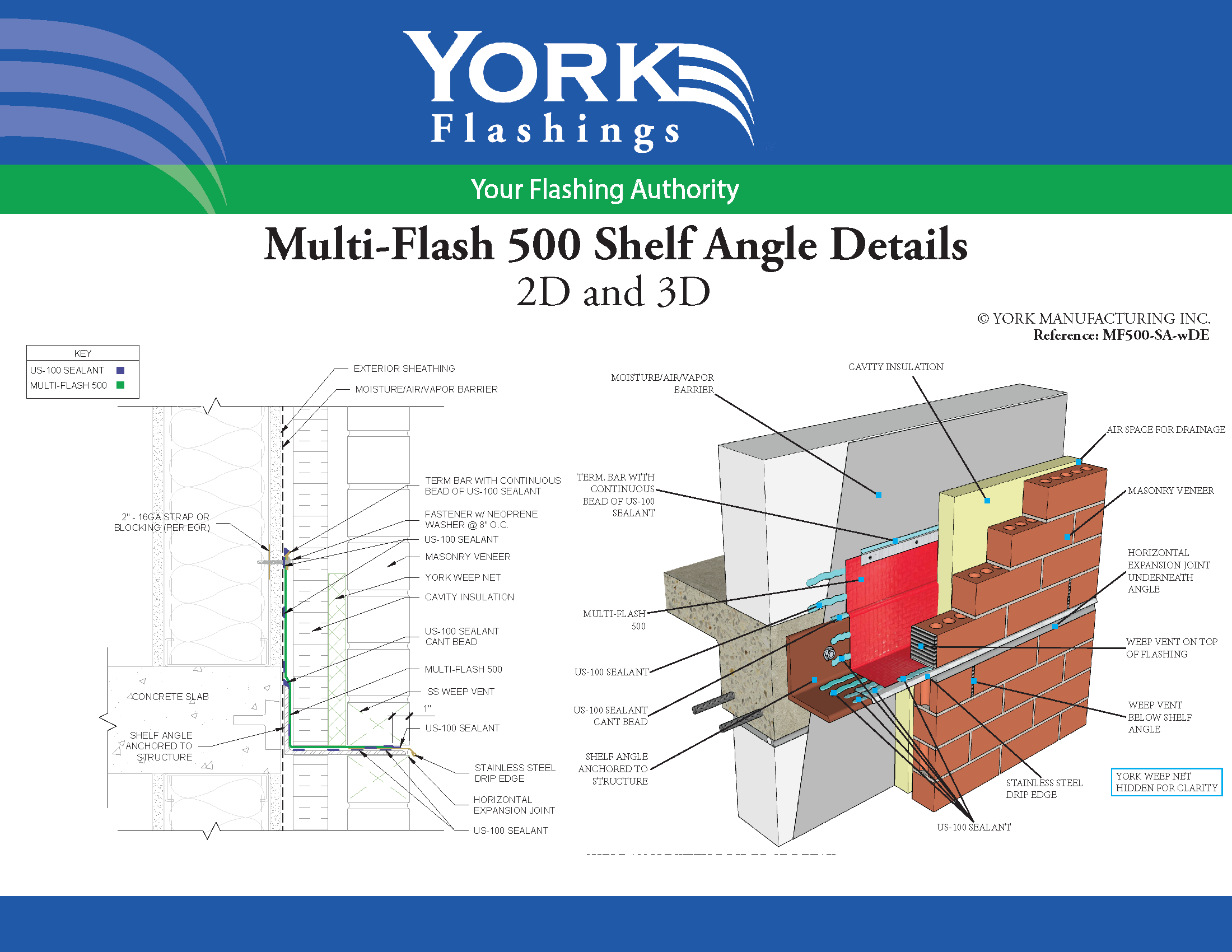

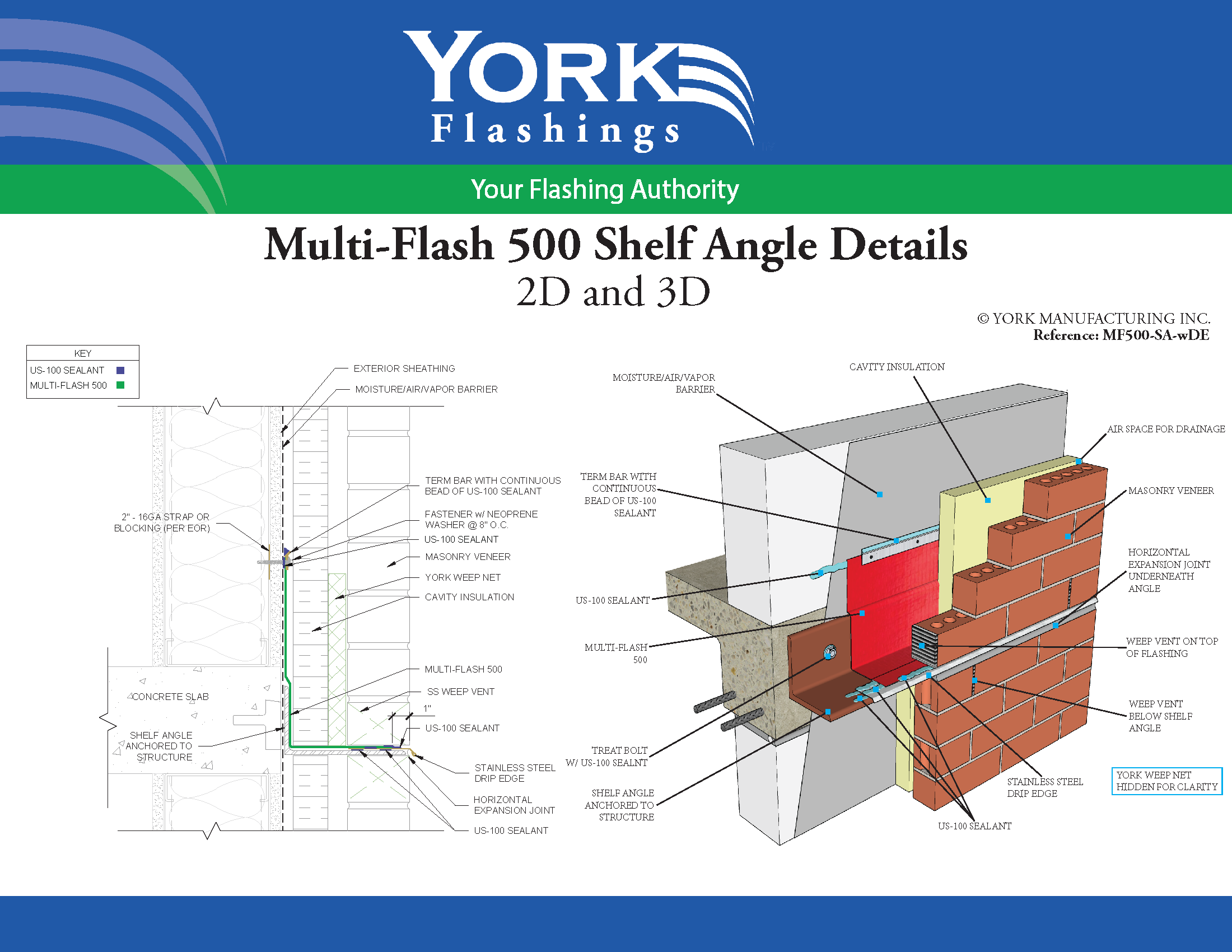

Shelf Angle

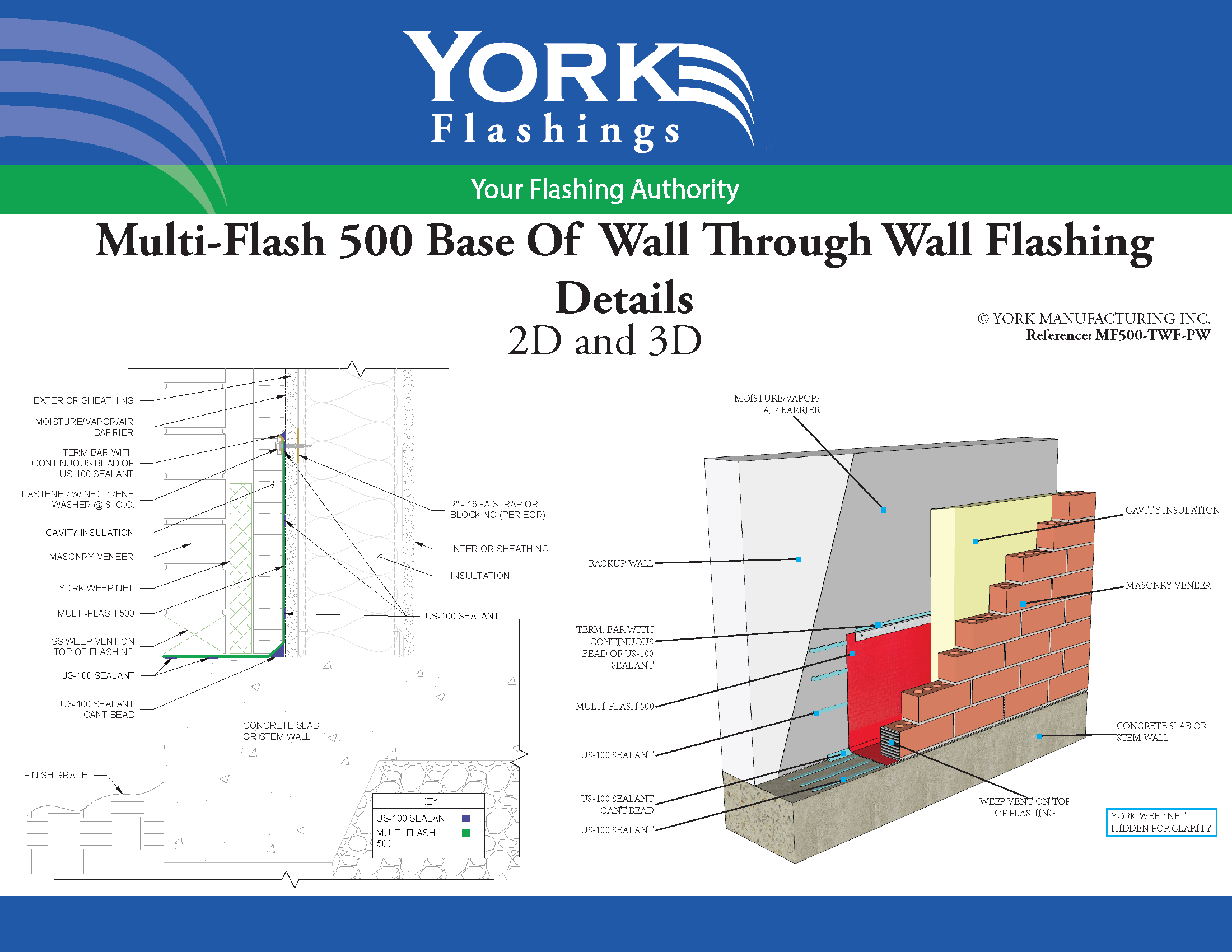

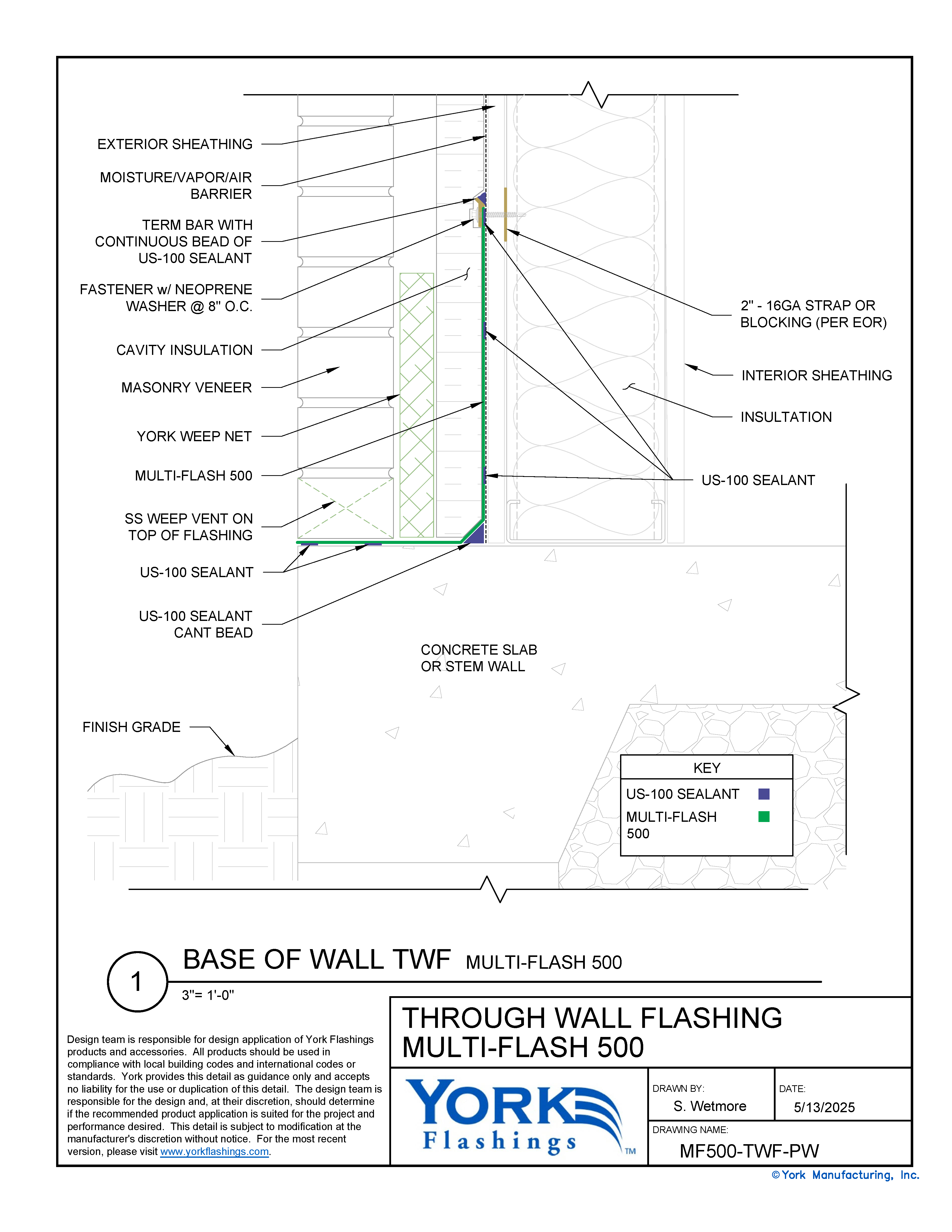

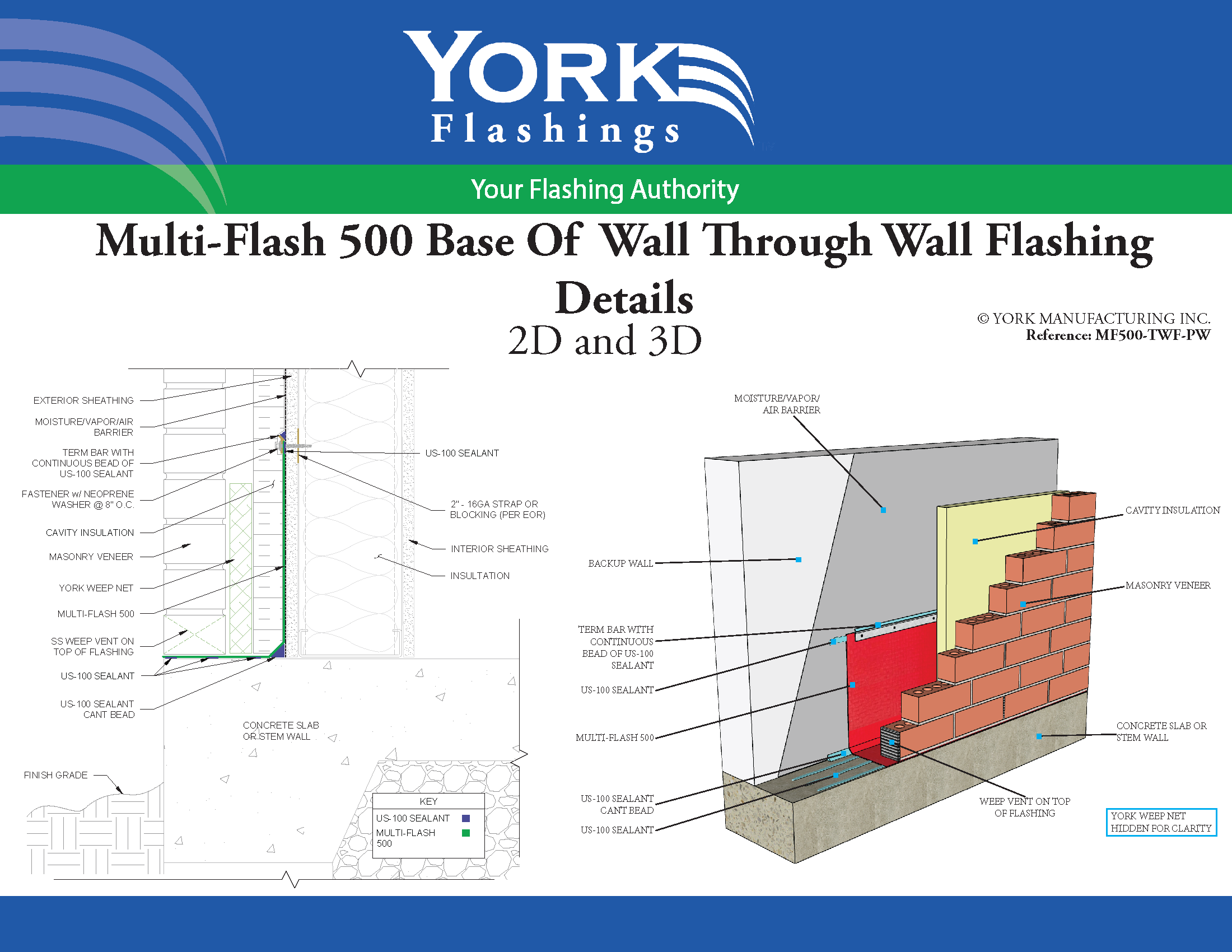

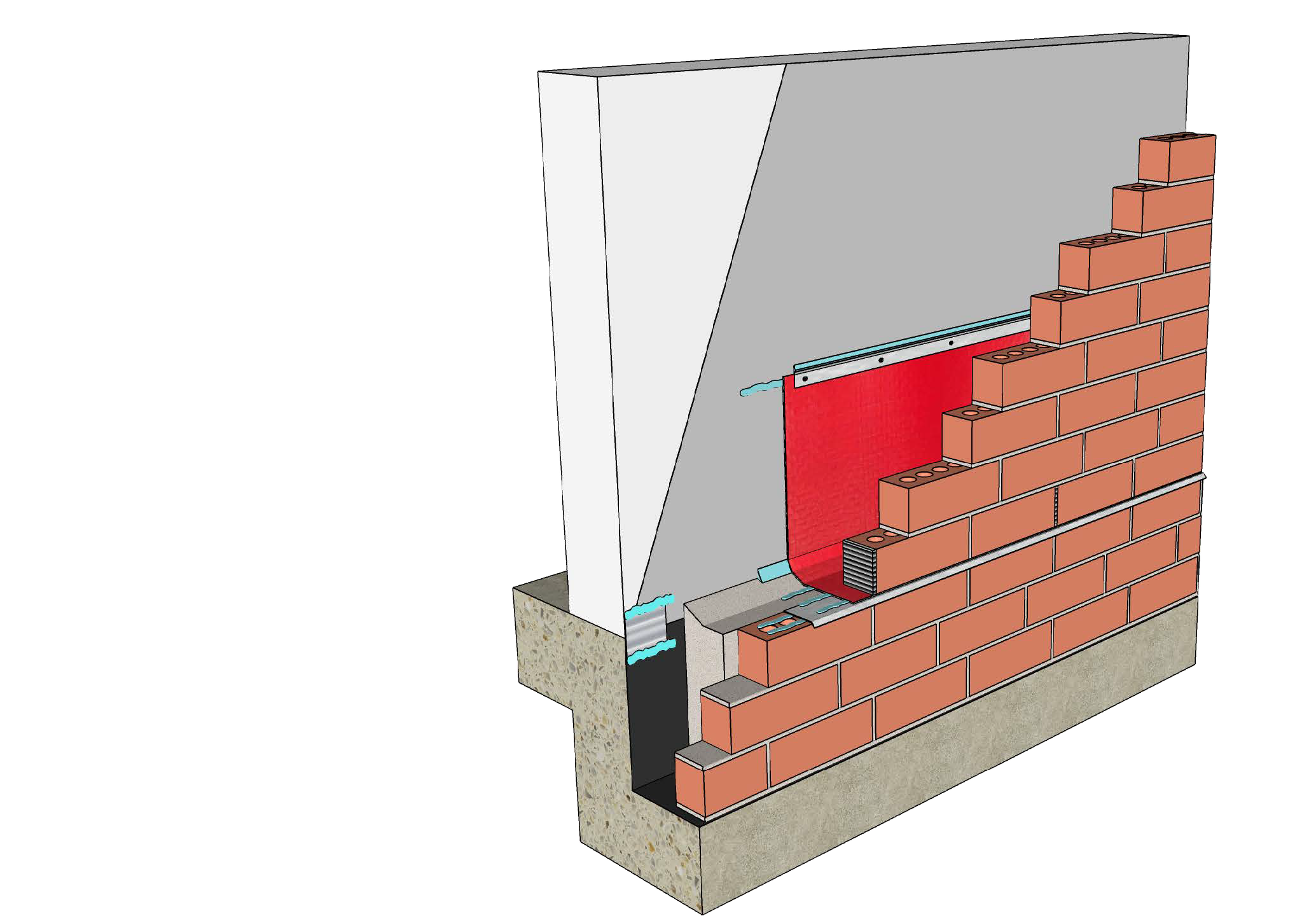

Through Wall Flashing

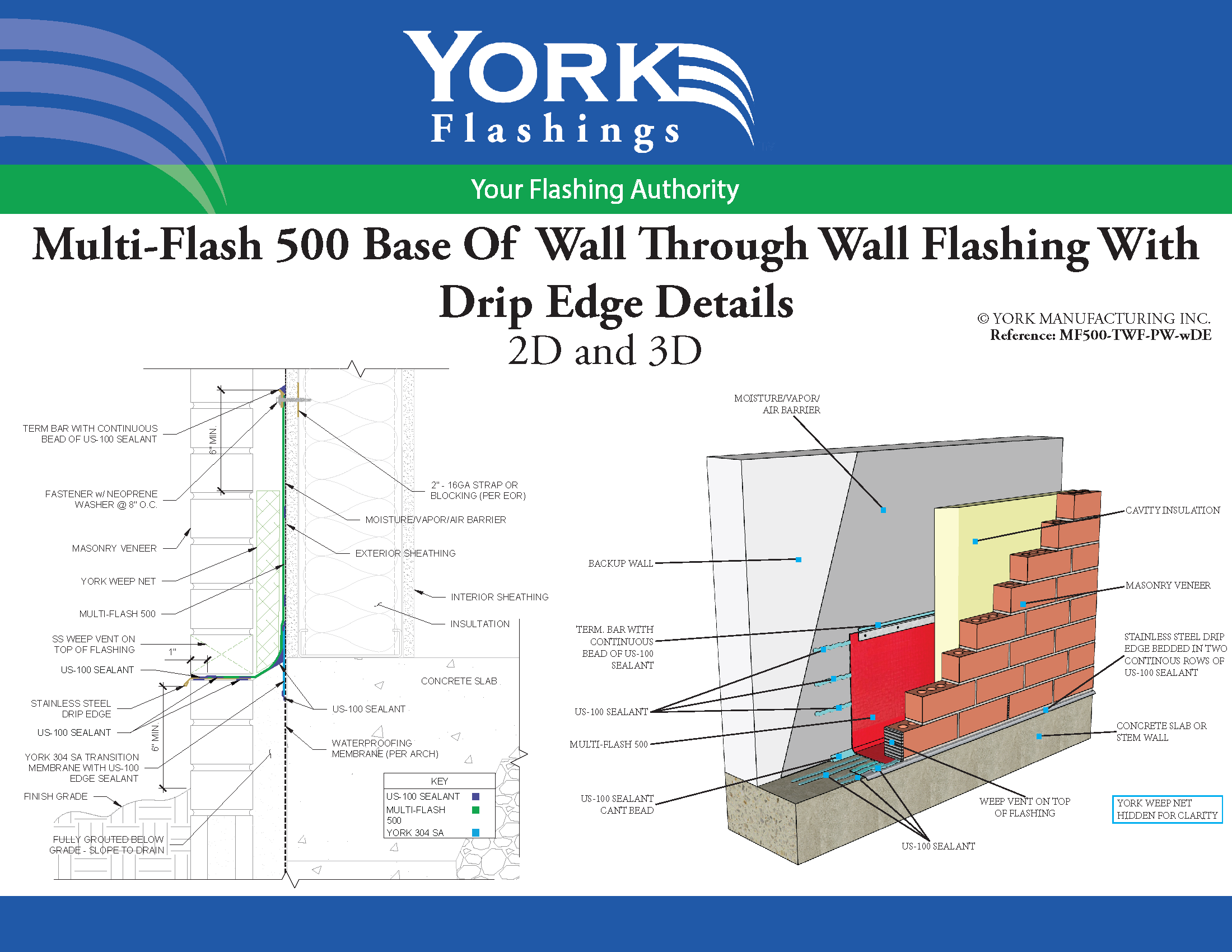

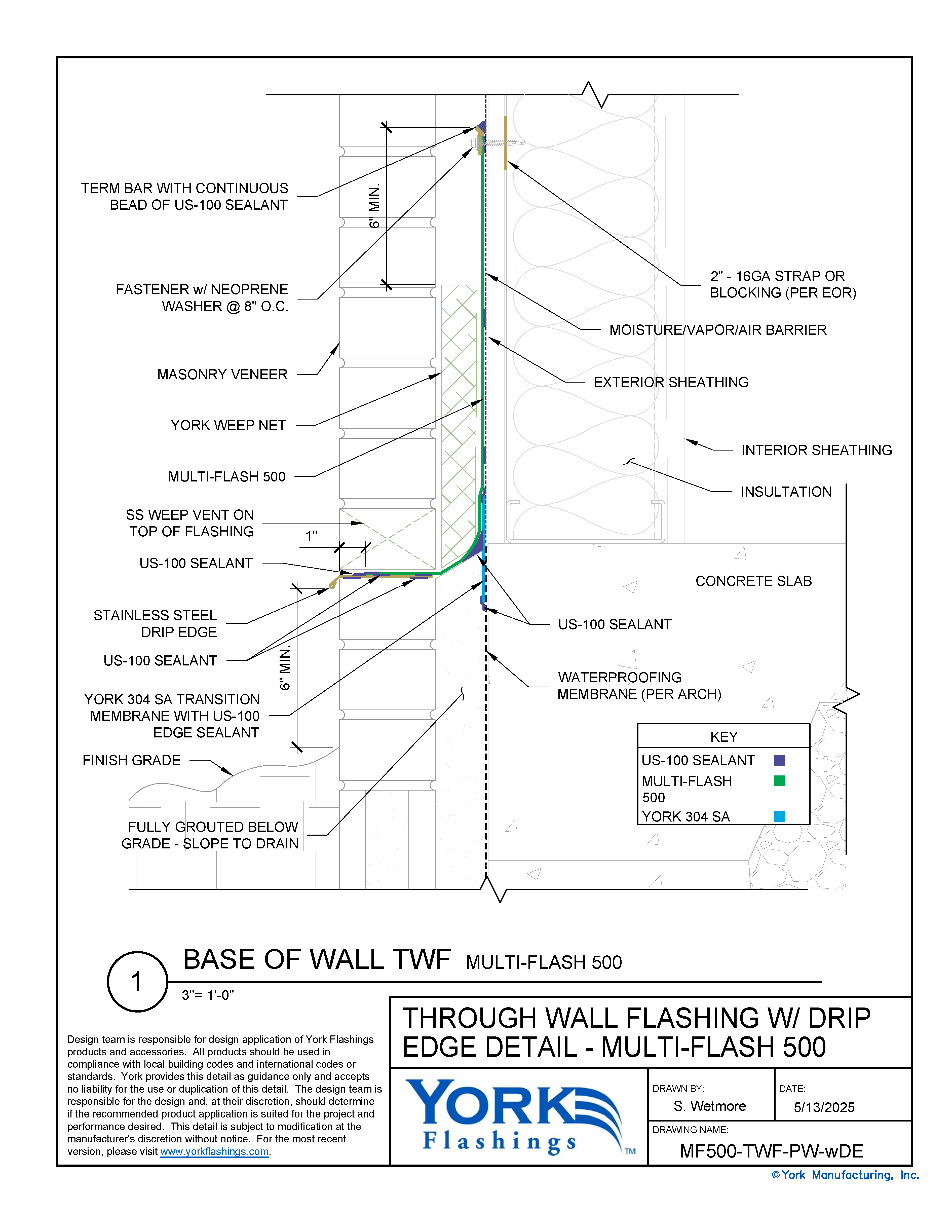

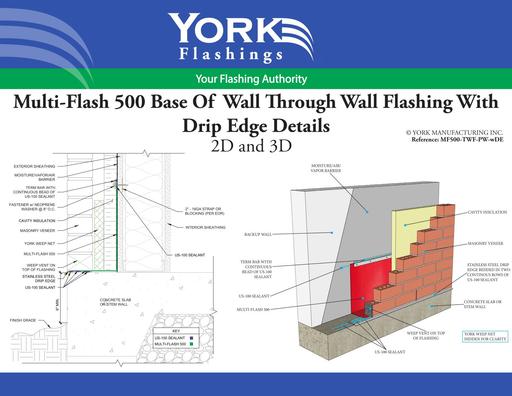

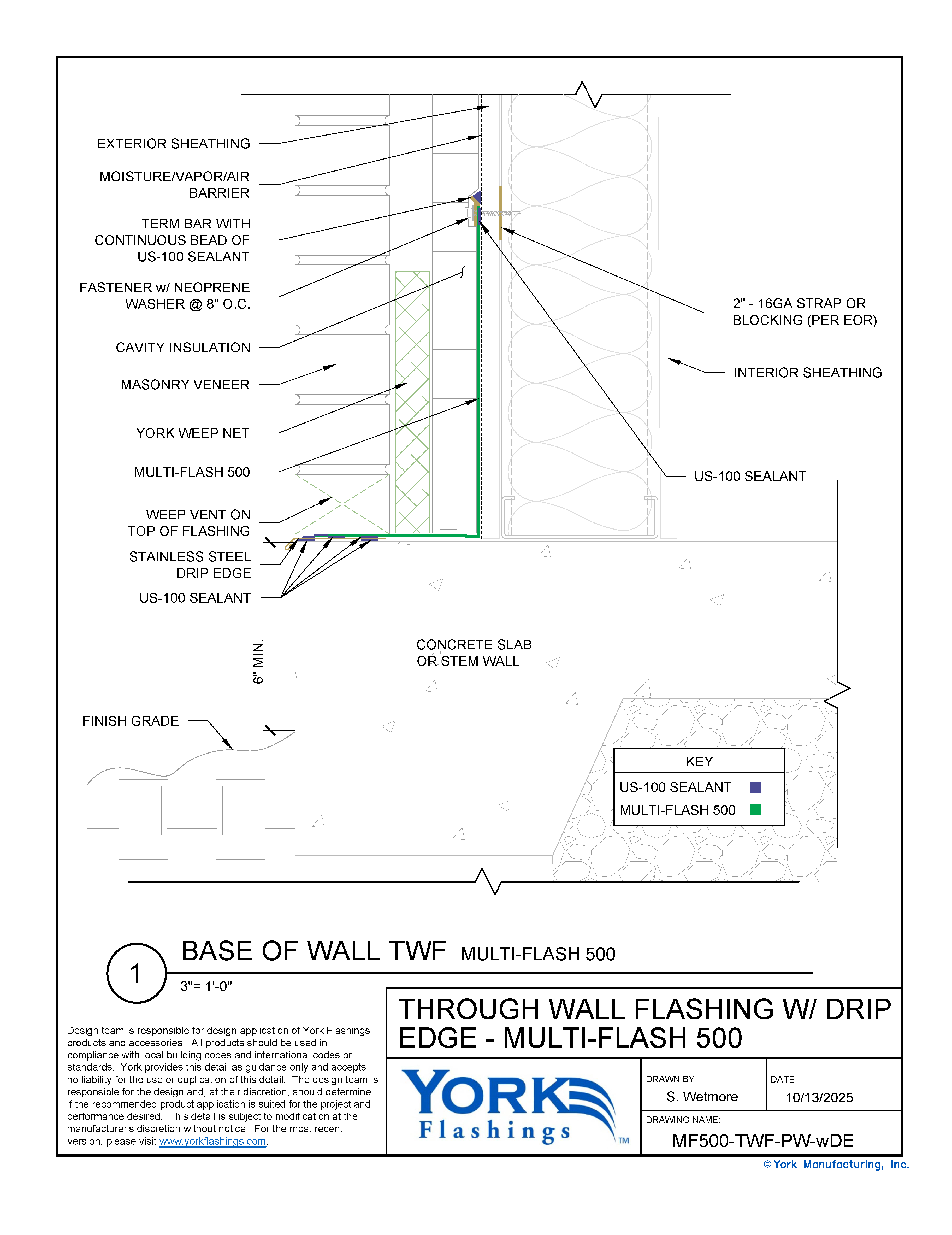

Through Wall Flashing with Drip Edge

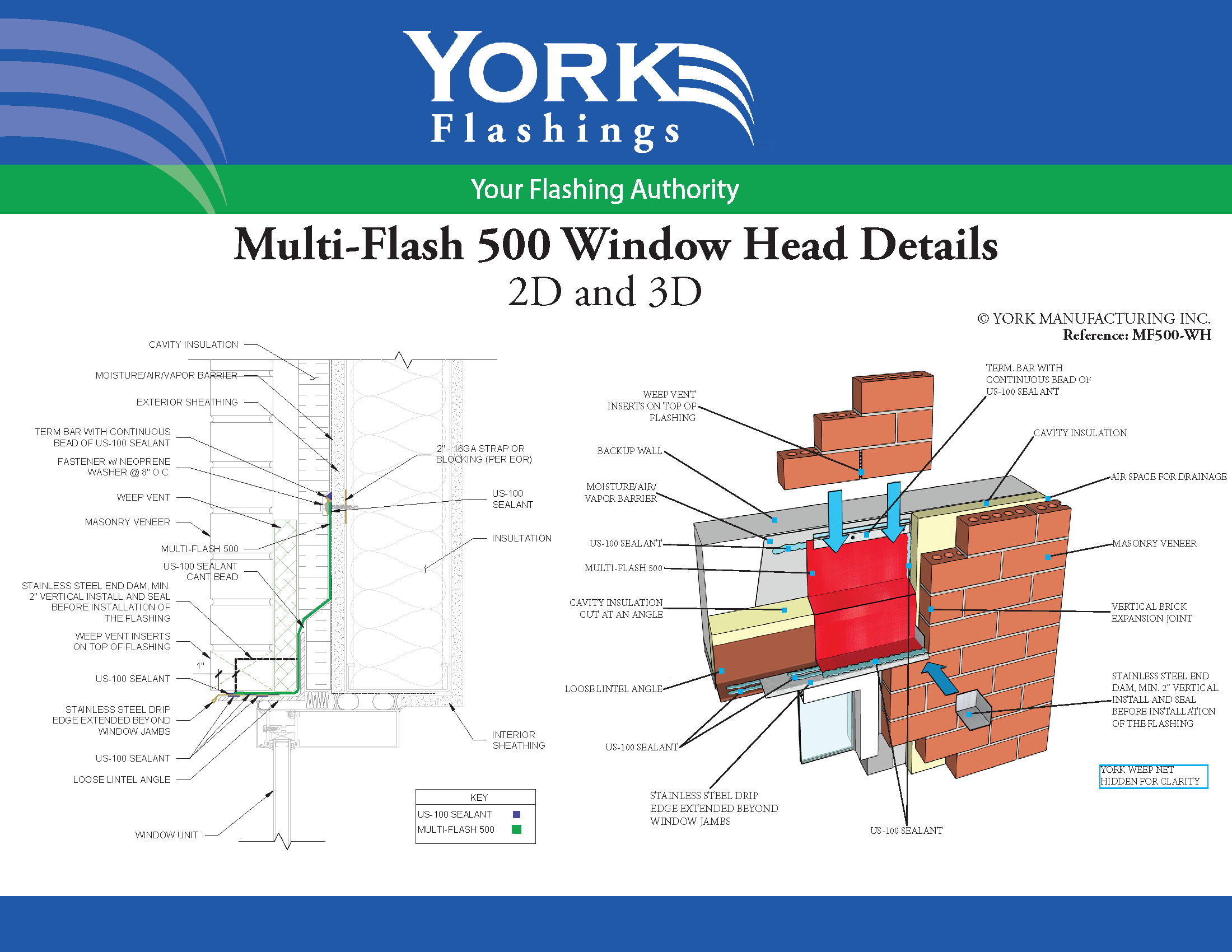

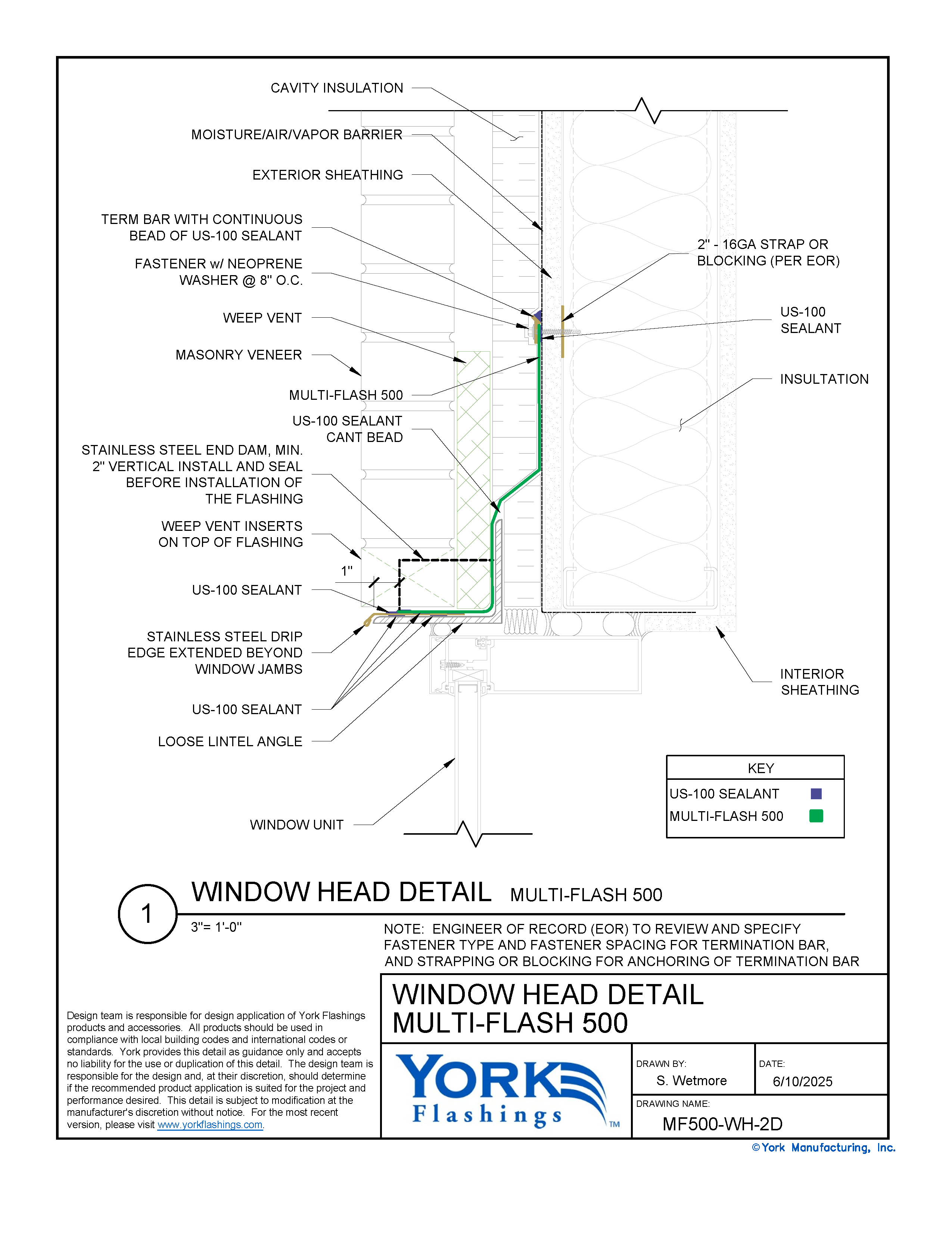

Window Head

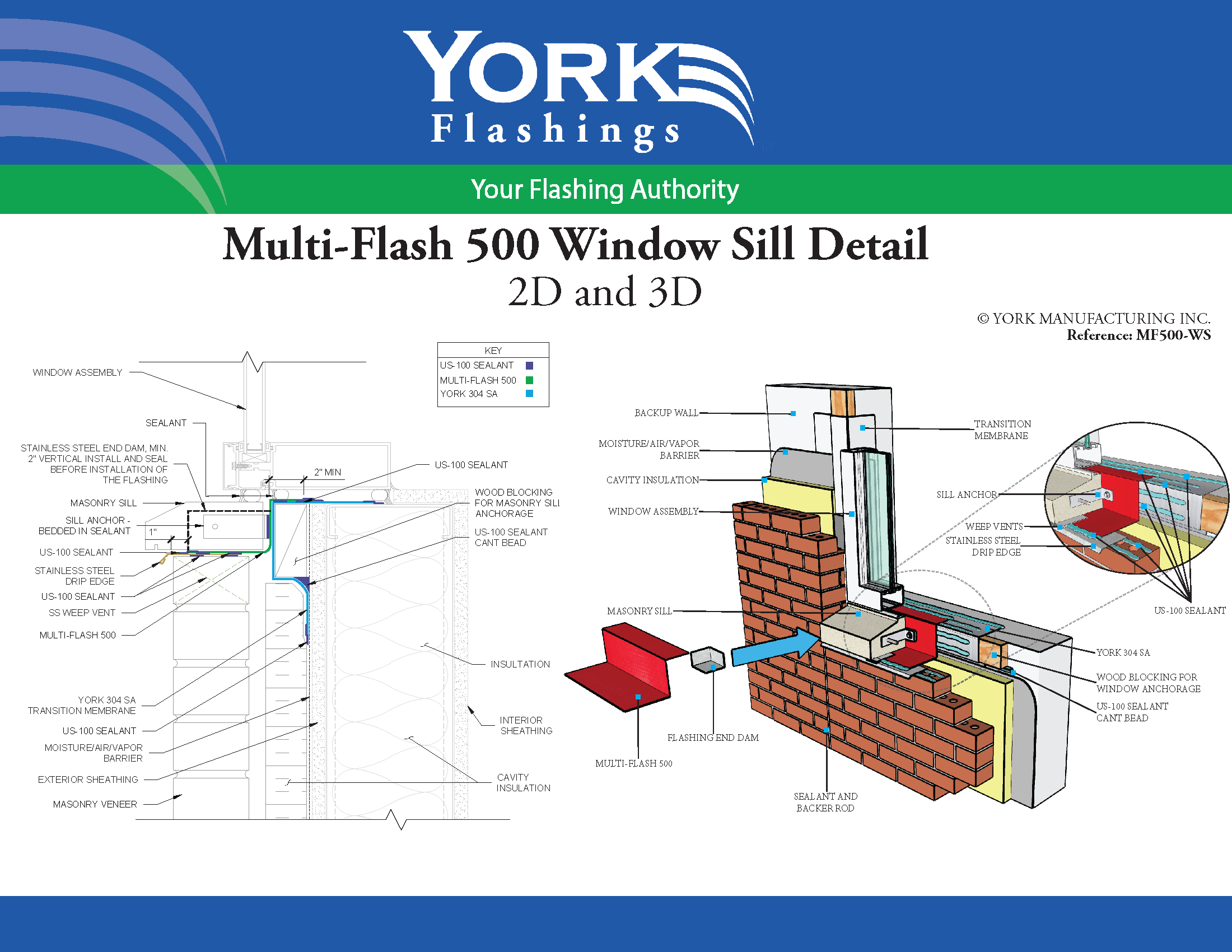

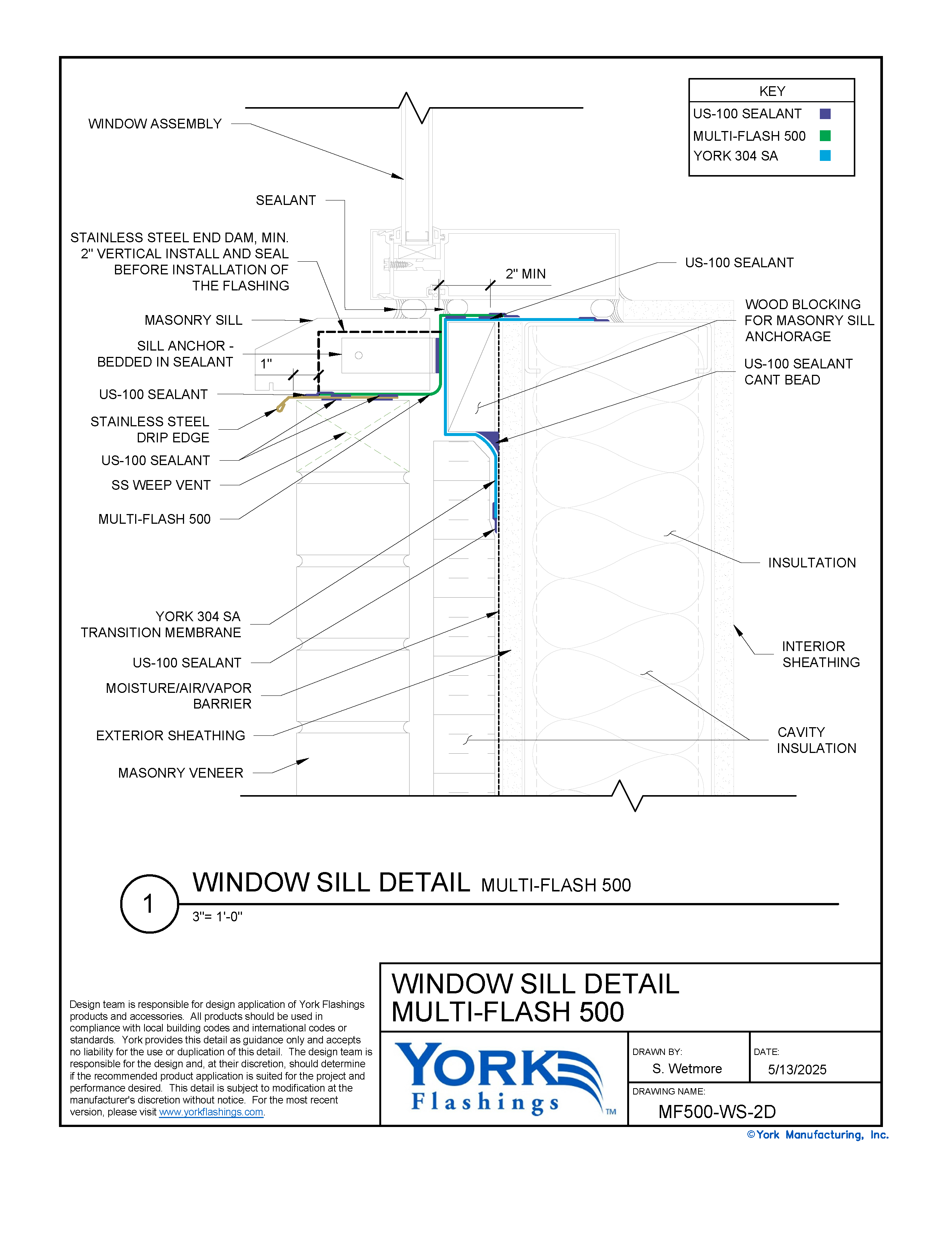

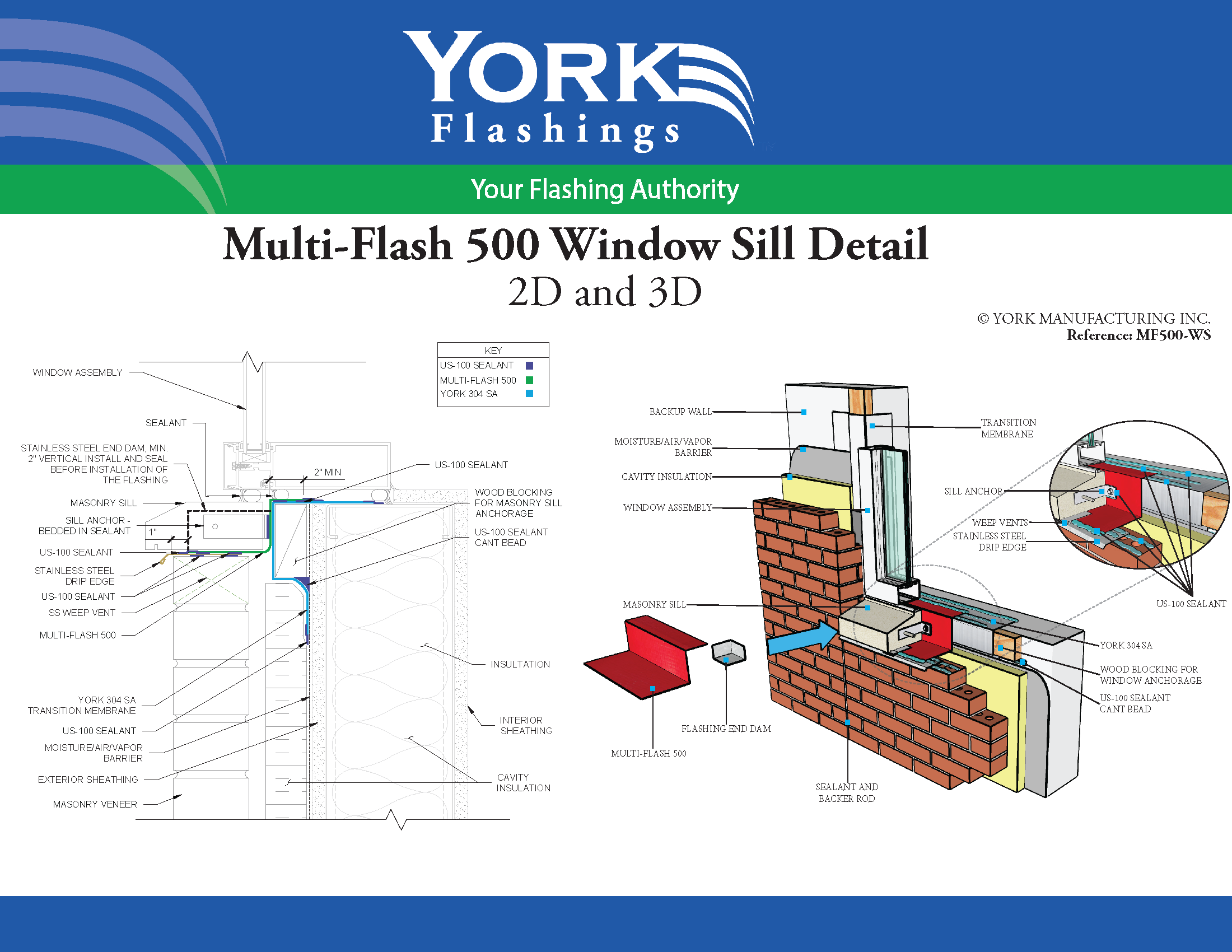

Window Sill
SDS
Tech Data
HPD
LEED
Sub Request
Submittal
Multi-Flash 500
Copper Flashing - Offers best in class puncture and tear resistance.
